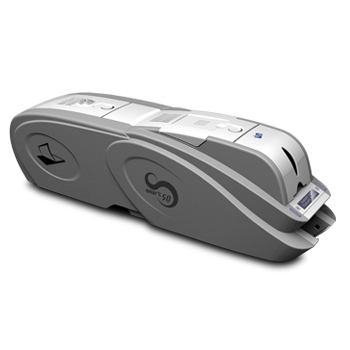

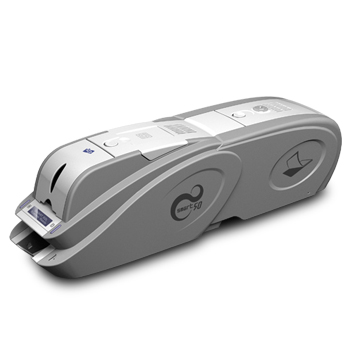

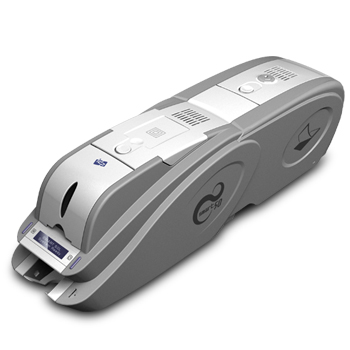

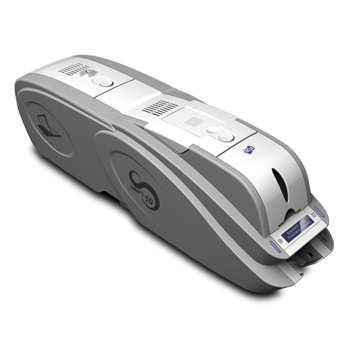

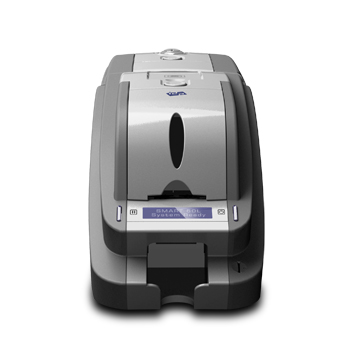

    Smart 50L

    The high quality of lamination printing for high security ID card!

    SMART-50L Printer produces long - life cards for ID and access control with customizable security features and ability to print smart cards. To cater to expanding requirement in card security,SMART-50L DLW (Direct Laminating in a Wink) technology provides the moststable & fast laminating solutions.

    When it comes to security and durability,SMART-50L provides premium protection for ID card.

  • Overview

    • SMART-50L is suitable for any type of application that requires high security of ID cards such as:

    • National ID cards
    • Driver Licenses
    • Government & Military ID cards
    • High security access control ID cards
    • Law enforcement and correctional facility ID cards
    • Airport ID cards

  • Technical Parameters

    • Single or Dual sided printing and laminating.
    • Instant direct heating lamination.
    • Printing and lamination speed : 23 sec./card (YMCK and single lamination) .
    • 50S and 50D field upgradable to 50L.
    • Holographic lamination for visual stripe, Contact and Contactless,SIM.
    • 2 line LCD with 2 LED buttons for front operation.
    • Upgradable modules:Network

  • Specification

    • Printing
    Print Type Dye-Sublimation
    Print Area Edge to Edge
    Resolution 300 dpi
    Dual Side Printing Yes (Flipper Installed)
    Card
    Card Feeding Automatic
    Card Size ISO CR80 (54mm x 86mm / 2.12" x 3.38")
    Card Thickness 0.38mm (15mil) ∼ 1.0mm (40mil)
    Card Type PVC, Composite PVC, PET
    Print Speed
    Monochrome 5 sec./ (720 cards/hour)
    YMCKO 22sec./card (164cards/hour) Max. 18sec./card (200cards/hour)
    YMCKOK 27 sec./card (130 cards/hour) Max. 23sec./card (155 cards/hour)
    Laminating
    Laminating Mode Single & Dual Lamination
    Laminating Film 0.6mil,1.0mil (clear & Holographic)
      Simultaneous:23sec. (YMCK,single Lamination)
    Laminating Speed Simultaneous:33sec. (YMCKK,single Lamination)
      One by One:44sec. (YMCK,single lamination)
      One by One:54sec. (YMCKK,single lamination)
    Capacity
    Input Hooper 100 Cards
    Output Hooper 40 Cards
    System
    Memory 64MB RAM
    Display 2 lines LED Display
    Control Panel 2 LED Button
    Supported Platforms Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux
    Communication USB, Ethernet (Option)
    Power Supply Free Voltage (AC 110/220V, 50 ∼ 60Hz)
    Power Consumption (Max) 96W
    Temperature / Humidity 15 ∼ 350C / 20 ∼ 80%
    Dimensions
    Dimension (W x L x H) 170 mm x 900mm x 195mm
    Weight 9.2 kg / 20lbs
    Encoding Options
    Magnetic ISO 7811 (Track I, II, III Read / Write) , HiCo/LoCo, JIS II
    Contact Smartcard ISO 7816 (ID -1)
    Contactless Smartcard MIFARE, ISO 14443 (Type A / B) ,
    (Internal & External) ISO 15693, DESFIRE, iCLASS
    Certifications CB, CE, FCC, KC ,C-tick, UL, BIS
