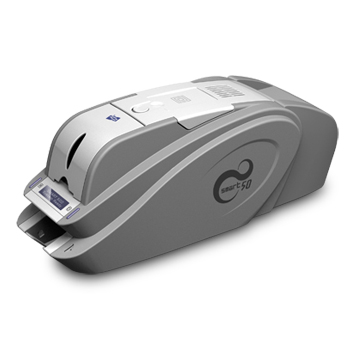

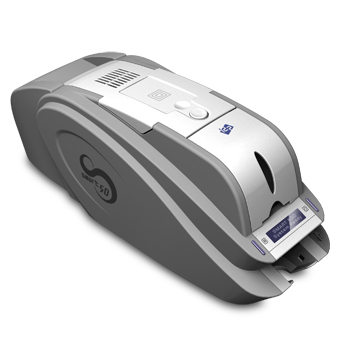

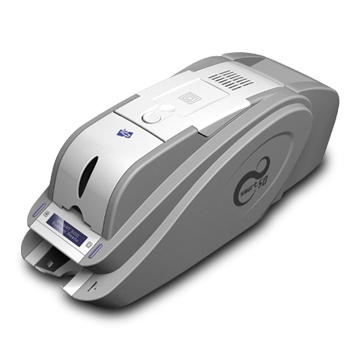

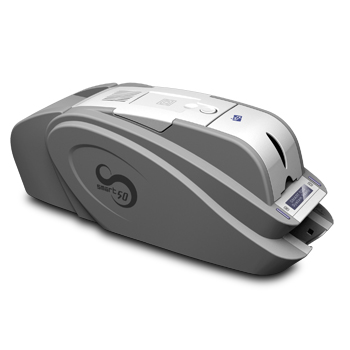

    Smart 50D

    High printing performances for your dual-sided ID cards!

    For dual-sided color printing,SMART-50D support fastest printing,high-quality graphics,in the same product's field,either in color or in monochrome. it is ideal solution to print ID cards on demand or in volume.

    SMART-50D offers a wide range of optional features including magnetic encoder,contact and contactless samrt catd encoders making it ideal for many applications in a variety of environments.

  • Overview

    • SMART-50D is suitable for any type of application that requires dual-sided printing of ID cards such as:
    • Employee ID cards
    • Student IDs
    • Payment cards
    • Health cards
    • Leisure resort pass cards
    • Identification cards
    • Transport pass cards
    • Loyalty cards
    • Event cards etc.

  • Technical Parameters

      • Cost Competitiveness
    • Prevent the waste of ribbon panel by perfect auto ribbon search function.
    • Free bundle design software (Smart Design) .
      • Excellent Convenience
    • Show real-time process status through 2 lines LCD window.
    • Front card In/out system (Front side Hopper & Stacker) .
    • Convenient semi-cartridge type's ribbon & cleaning roller.
    • Easy Contact/Contactless/Mobile IC encoding.
      • Clear Printing Quality
    • Apply FINE Imaging Technology to make clear and opimized color.
    • Print high quality mono image with Resin using High Quality Dithering Algorithm.
      • Dual-Sided Printing
    • Dual-sided printing with bult-in flipper.
    • Apply latest Optimal Rotating Technology (Rotate in a second without noise) .
      • Printing Speed
    • YMCKO : 22sec./card (164cards/hour) Max. 18sec./card (200cards/hour) .
    • YMCKOK : 27 sec./card (130 cards/hour) Max. 23sec./card (155 cards/hour) .
      • Various Option
    • Magnetic Stripe Encoding:ISO 7811,JIS II, Hico/Loco.
    • IC (Contact) Encoding : ISO 7816 (ID-1) & SIM Type-ISO 7816 (ID-000) .
    • Two Contactless Encoding (Internal & External) : ISO 14443 (Type A/B) ,ISO 15693,MIFARE.
    • Ethernet.
      • Easy Card Issuing
    • Provide design and encoding tool (Smart Design) .
    • Easy connection with external database.
    • Compatible with MS Excel/Word/power point and Photoshop program

  • Specification

    • Printing
    Print Type Dye-Sublimation
    Print Area Edge to Edge
    Resolution 300 dpi
    Dual Side Printing Yes
    Card
    Card Feeding Automatic
    Card Size ISO CR80 (54mm x 86mm / 2.12" x 3.38")
    Card Thickness 0.38mm (15mil) ∼ 1.0mm (40mil)
    Card Type PVC, Composite PVC, PET
    Print Speed
    Monochrome 5 sec./ (720 cards/hour)
    YMCKO 22sec./card (164cards/hour) Max. 18sec./card (200cards/hour)
    YMCKOK 27 sec./card (130 cards/hour) Max. 23sec./card (155 cards/hour)
    Capacity
    Input Hooper 100 Cards
    Output Hooper 40 Cards
    System
    Memory 64MB RAM
    Display 2 lines LED Display
    Control Panel 2 LED Button
    Supported Platforms Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux
    Communication USB, Ethernet (Option)
    Power Supply Free Voltage (AC 110/220V, 50 ∼ 60Hz)
    Power Consumption (Max) 48W
    Temperature / Humidity 15 ∼ 350C / 20 ∼ 80%
    Dimensions
    Dimension (W x L x H) 170 mm x 510mm x 195mm
    Weight 5.5 kg / 12lbs
    Encoding Options
    Magnetic ISO 7811 (Track I, II, III Read / Write) , HiCo/LoCo, JIS II
    Contact Smartcard ISO 7816 (ID -1)
    Contactless Smartcard MIFARE, ISO 14443 (Type A / B) ,
    (Internal & External) ISO 15693, DESFIRE, iCLASS
    Certifications CB, CE, FCC, KC, C-tick, UL, BIS
