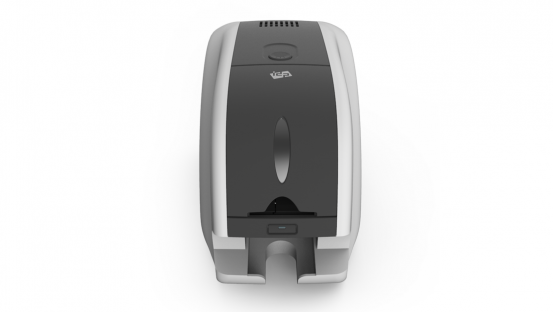

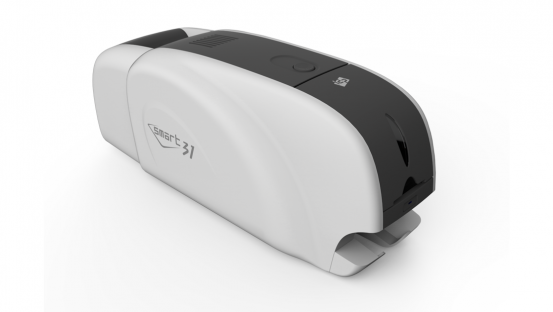

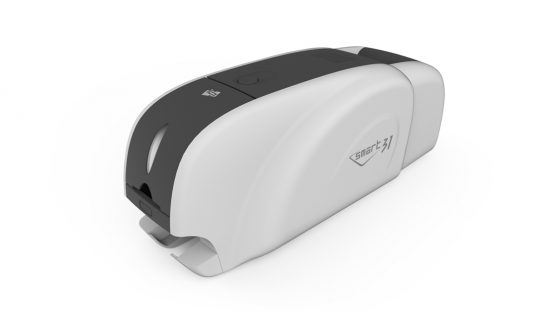

    Smart 31D (Dual)

  • Overview

    • SMART-31D is Value for Everyone!

    Single or dual-sided printing. Field upgradable by installation of flipper on SMART-30D.

    SMART-31D is suitable for any type of application that requires dual-sided printing of ID cards such as:

    • Employee ID cards
    • Student IDs
    • Payment cards
    • Health cards
    • Leisure resort pass cards
    • Identification cards
    • Transport pass cards
    • Loyalty cards
    • Event cards etc

  • Technical Parameters

    • Single or Dual Sided Printing
    • Print Speed: Max. 26 sec./card (YMCKOK)
    • 300, 600 & 1200dpi with Edge-to-Edge Printing
    • LED Buttons for Front Operation
    • Low Cost Security with UV Printing
    • Upgradable Modules: Ethernet
    • nstallable Encoders: MS, Contact & Contactless

  • Specification

    • Printing
    Print Mode Dual Sided
    Print Type Direct Dye-Sublimation
    Print Area Edge to Edge
    Resolution 300dpi (Color & Mono), 600 & 1200dpi (Mono only)
    Card
    Card Feeding Automatic
    Card Size ISO CR80 (54mm x 86mm / 2.12" x 3.38")
    Card Thickness 0.38mm (15mil) ∼ 0.76mm (30mil)
    Card Type PVC, Composite PVC, PET
    Print Speed
    Monochrome 5 sec./card (720 cards/hour)
    YMCKO Max. 20 sec./card (180 cards/hour)
    YMCKOK Max. 26 sec./card (138 cards/hour)
    Capacity
    Input Hooper 80 Cards
    Output Hooper 25 Cards
    System
    Memory 64MB RAM
    Control Panel 1 LED Button
    Supported Platforms Microsoft Windows 2000/2003/XP/Vista/7, Mac OS, Linux
    Communication USB, Ethernet (Option)
    Power Supply Free Voltage (AC 110/220V, 50 ∼ 60Hz)
    Power Consumption (Max) 48W
    Temperature / Humidity 15 ∼ 35 C / 35 ∼ 70%
    Dimensions
    Dimension (W x L x H) 172 mm x 472mm x 190mm
    Inch 6.8 (W) x 18.6 (L) x 7.5 (H)
    Weight 4.2 kg / 9.5 lbs
    Encoding Options
    Magnetic ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
    Contact Smartcard ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
    Contactless Smartcard ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica,
    Certifications CB, CE, FCC, KC, CCC
