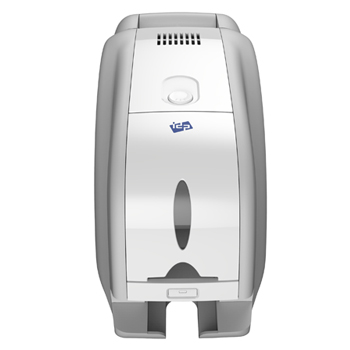

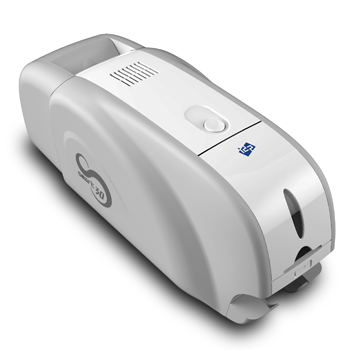

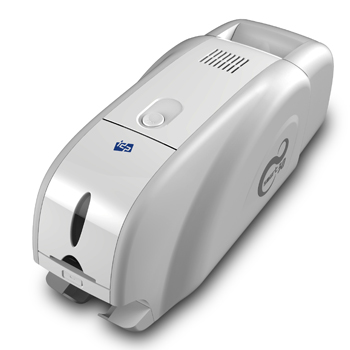

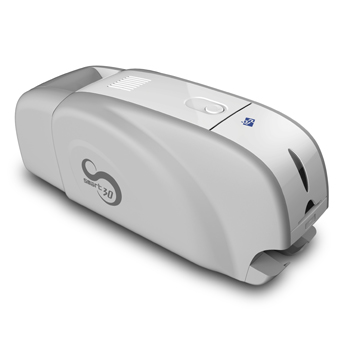

    Smart 30D (Dual) is Value for Everyone!

    Single or dual-sided printing. Field upgradable by installation of flipper on SMART-30D.

  • Overview

    • Employee ID cards
    • Student IDs
    • Payment cards
    • Health cards
    • Leisure resort pass cards
    • Identification cards
    • Transport pass cards
    • Loyalty cards
    • Event cards etc

  • Technical Parameters

    • Print speed : 33 sec./card (YMCKOK) .
    • 300dpi with edge-to-edge printing.
    • LED button for front operation.
    • Installable encoders : magnetic stripe, contact and contactless.

  • Specification

    • Printing
    Print Type Dye-Sublimation
    Print Area Edge to Edge
    Resolution 300 dpi
    Dual Side Printing Yes
    Card
    Card Feeding Automatic
    Card Size ISO CR80 (54mm x 86mm / 2.12" x 3.38")
    Card Thickness 0.38mm (15mil) ∼ 0.76mm (30mil)
    Card Type PVC, Composite PVC, PET
    Print Speed
    Monochrome 5 sec. (720 cards/hour)
    YMCKO 28 sec. (128 cards/hour)
    YMCKOK 32 sec./ (112 cards/hour)
    Capacity
    Input Hooper 100 Cards
    Output Hooper 25 Cards
    System
    Memory 64MB RAM
    Control Panel LED Button
    Supported Platforms Microsoft Windows 2000/2003/XP/Vista/7, Mac OS, Linux
    Communication USB, Ethernet (Option)
    Power Supply Free Voltage (AC 110/220V, 50 ∼ 60Hz)
    Power Consumption (Max) 48W
    Temperature / Humidity 15 ∼ 350C / 20 ∼ 80%
    Dimensions
    Dimension (W x L x H) 172 mm x 472mm x 190mm
    Weight 4.2 kg / 9.2 lbs
    Encoding Options
    Magnetic ISO 7811 (Track I, II, III Read / Write) , HiCo/LoCo, JIS II
    Contact Smartcard ISO 7816 (ID -1)
    Contactless Smartcard MIFARE, ISO 14443 (Type A / B) ,
    (Internal & External) ISO 15693, DESFIRE, iCLASS
    Certifications CB, CE, FCC, KC, C-tick, BIS
